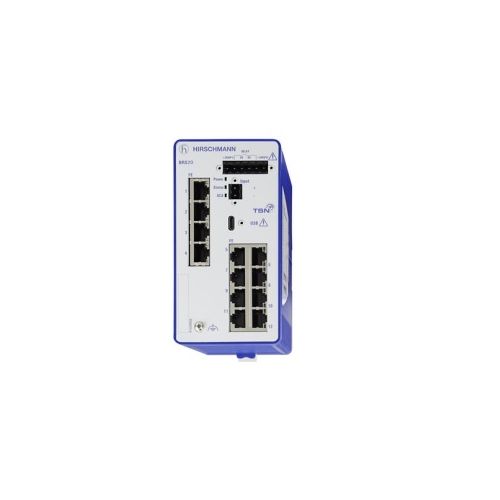

942170122 | BRS40-12TX-2A| Bobcat Ethernet Switch
Availability: Approximately 4 to 6 weeks
Bobcat Managed Industrial Switch for DIN Rail, 12 Ports in total: 12 x 10/100/1000BASE TX / RJ45, Real-time communication using TSN
| Complete Electronics Part No. | 942170122 |
|---|---|
| Manufacturers Part No. | 942170122 |
| Ethernet Product Type: | BRS40 |
| Total 10/100/1000 (RJ45) Ports: | 12 |
| Total Ethernet Ports: | 12 |
| Operating Voltage: | DC 12V / 24V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
BRS40-00129999-STCY99HHSEAXX.X.XX
12 Ports in total: 12x 10/100/1000BASE TX / RJ45
- Real-time communication using TSN.
- Power supply/signaling contact: 1 x plug-in terminal block, 6-pin
- Digital Input: 1 x plug-in terminal block, 2-pin
- Operating voltage 2 x 12 V DC ... 24 VDC
- Port Power Down
- Operating temperature: -40°C to +70°C
- Dimensions (WxHxD): 73mm x 138mm x 115mm
- Weight: 700g
- Housing Material: PC-ABS
- Mounting: DIN Rail
- Protection class: IP30
- Approvals: CE, FCC, EN61131, EN62368-1
