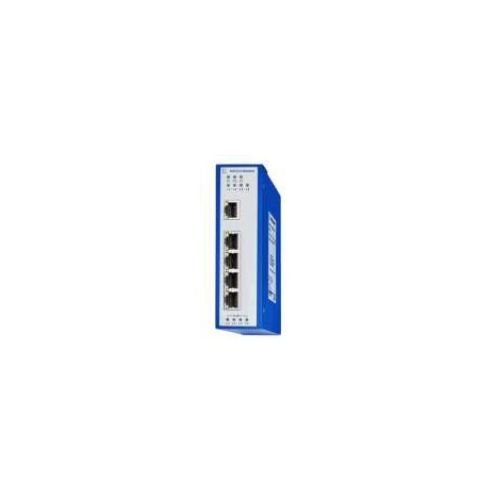

942274001 | Unmanaged Industrial Ethernet Switch
Unmanaged, Industrial ETHERNET Switch, 5 x 10/100/1000 BASE-T, TP cable, RJ45 sockets, 1 x 100/1000MBit/s SFP
| Complete Electronics Part No. | 942274001 |
|---|---|
| Manufacturers Part No. | 942274001 |
| Ethernet Product Type: | Unmanaged Switch |
| Total 100/1000 (FX) Ports | 1 |
| Total 10/100/1000 (RJ45) Ports | 5 |
| Number Of PoE Ports | 4 |
| Total Ethernet Ports | 6 |
| FX (Optical) Connector Type: | SFP |
| Operating Voltage: | DC 24V/48V |
| Mounting: | DIN Rail / Wall |
| IP Rating: | IP30 |
Description
SPIDER-SL-44-05T1O69999TY9HHHH
Unmanaged, Industrial ETHERNET Rail Switch
- 5 x 10/100/1000 BASE-T, TP cable, RJ45 sockets
- 1 x 100/1000MBit/s SFP
- thereof 4 x PoE+ ports
- Auto-crossing
- Auto-negotiation
- Auto-polarity
- Operating voltage: 24/48 V DC (12 - 57 V DC / 12 - 18 V DC, derating output)
- Power consumption Max. 139.7 W with 120 W PoE output
- Operating temperature -40-+70 °C
- Diagnostic functions LEDs (power, link status, data, data rate)
- Mounting: DIN Rail
- Protection class: IP30
- Dimensions (WxHxD) 37 x 115 x 130 mm (w/o terminal block)
- Weight 710 g
Accessories:
- Rail Power Supply RPS 30/80 EEC/120 EEC (CC)
- Wall mounting plate for DIN rail mounting (width 40/70 mm)
