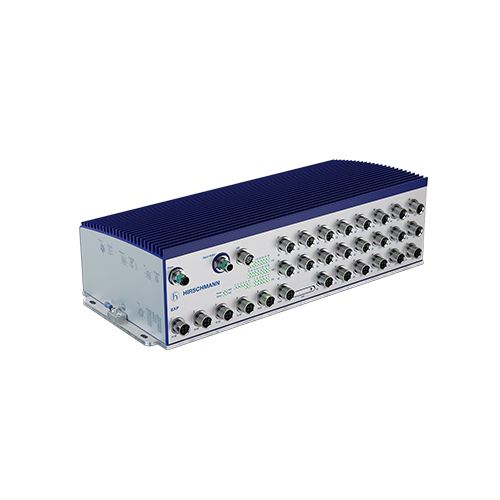

942334010 | BXP60-20TX-EECC-HV-3A | Ethernet Switch
Rugged, High Port count switch for Rail Rolling stock, full GE Type, 6 x 1000/2500/10G BASE-T, 14 x 10/100/1000 BASE-T ports, PoE+/PoE ++
Description
BXP60-20TX-EECC-HV-3A
High Port Count Managed Switch for Rail Rolling stock
14 x 10/100/1000 Mbps ports
6 x 1000/2500/10G Ethernet (GE) ports
20 x Ethernet ports in total
10 x PoE+ ports and 4 x PoE++ ports
Ethernet port connectors: Fast Locking M12 Push - Pull connectors (X coded)
Power supply/signaling contact: M12 5-pin plug, "K"-coding for non-SELV / “L”-coding for SELV
V.24 interface: 1 x M12 4-pin socket, A coding
Layer 2 or Layer 3 switch configuration options
Time sensitive networking (TSN)
IEEE 1588 Precision Time Protocol (PTP)
Intuitive HTML5 web interface
PCB conformally coated
SD-Card interface
Operating Voltage: 110 DC
Operating Temperature: -40°C to +70°C base plate cooling
Ingress Protection: IP40
Dimensions (WxHxD): 400mm x 180mm x 110mm
Flat Surface Mounting
Rohs Compliant
Net Weight: 6100g
Part Number: 942334010
Tariff Code: 85176200
Country of origin: Germany
