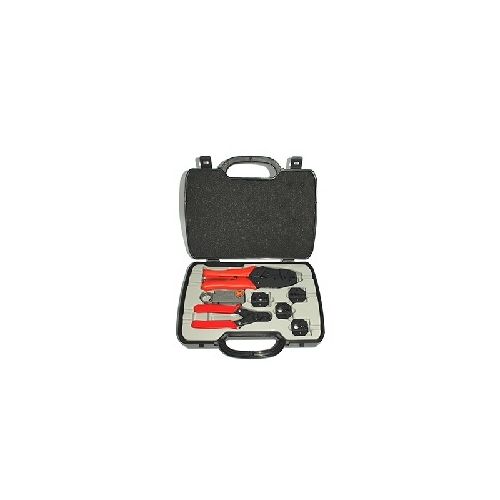

96-330K | 96330K | Ratchet Crimp Tool Kit
Tool Kit includes a Ratchet Crimp tool with 5 interchangable crimp dies, and a Rotary Cable Stripper
| Complete Electronics Part No. | 96330K |
|---|---|
| Manufacturers Part No. | 96-330K |
| Tooling | Ratchet Crimp Tool |
Description
Ratchet Crimp Tool Kit
Tool Kit includes a Ratchet Crimp tool with 5 interchangable crimp dies, a Rotary Cable Stripper to strip cables like RG58 and RG59 and a Cable Cutter to cut cable upto a max of 10.5mm dia.
All Supplied in a rugged tool box,
The kit includes everything you need to terminate the majority of coaxial cable connectors.
The 5 interchangable die sets cover 15 different hexagon and square sizes
1.07mm / 0.042" A/F Square, Die Set 3J
1.09mm / 0.043" A/F Square, Die Set 3G
1.72mm / 0.068" A/F Hex, Die Set A4
1.72mm / 0.068" A/F Hex, Die Set 3C
1.72mm / 0.068" A/F Hex, Die Set 3G
1.72mm / 0.068" A/F Hex, Die Set 3J
1.98mm / 0.078" A/F Hex, Die Set 3J
2.54mm / 0.100" A/F Hex, Die Set 3G
2.54mm / 0.100" A/F Hex, Die Set 3J
3.25mm / 0.128" A/F Hex, Die Set 3J
3.48mm / 0.137" A/F Hex, Die Set 3G
3.84mm / 0.151" A/F Hex, Die Set 3J
4.52mm / 0.178" A/F Hex, Die Set 3J
4.75mm / 0.187" A/F Hex, Die Set A4
5.41mm / 0.213" A/F Hex, Die Set A4
5.41mm / 0.213" A/F Hex, Die Set 3C
5.41mm / 0.213" A/F Hex, Die Set 3G
6.48mm / 0.255" A/F Hex, Die Set A4
6.48mm / 0.255" A/F Hex, Die Set 3G
6.50mm / 0.256" A/F Hex, Die Set 3C
8.10mm / 0.319" A/F Hex, Die Set 3C
10.9mm / 0.429" A/F Hex, Die Set 3J
