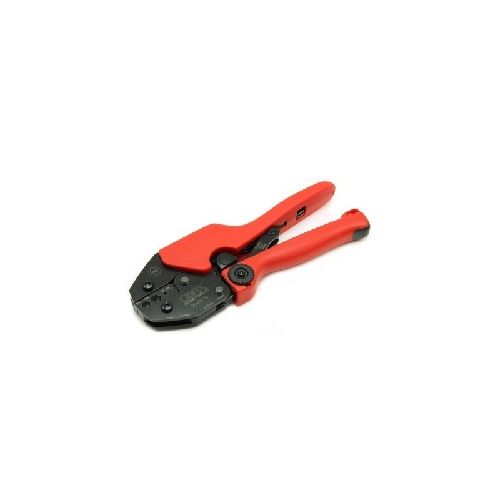

96-HTS-76 | 96HTS76 | Ratchet Crimp Tool
Ratchet Crimp Tool for terminating True 75 ohm BNC, Micro BNC and DIN 1.0/2.3 connectors to standard broadcast cables, with die cavities
| Complete Electronics Part No. | 96HTS76 |
|---|---|
| Manufacturers Part No. | 96-HTS-76 |
| Tooling | Ratchet Crimp Tool |
Description
Ratchet Crimp Tool
Ratchet Crimp Tool with Die cavities
- Die cavities -
- 0.95mm / 0.037" A/F Square for centre contact
- 1.72mm / 0.068" A/F Hexagon for centre contact
- 5.41mm / 0.213" A/F Hex
- 6.48mm / 0.255" A/F Hex -
- Jaws can be reversed for left handed use
