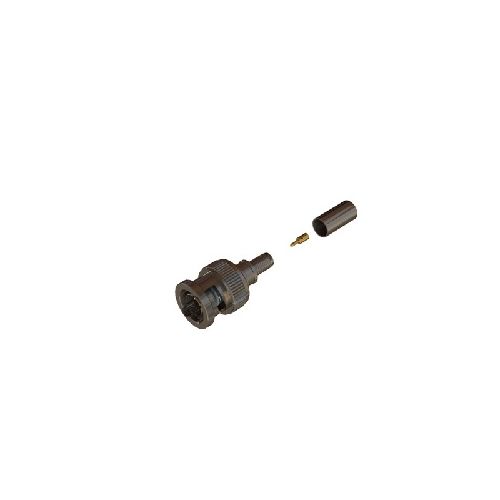

99-027-Q3-AH | 99027Q3AH | Bayonet Lock IP68 Crimp Plug
Using the technology of a BNC and the interface of a SMA and Using a bullet contact this Bayonet Lock Plug Connector is internal sealed to IP68 Un-Mated
| Complete Electronics Part No. | 99027Q3AH |
|---|---|
| Manufacturers Part No. | 99-027-Q3-AH |
| Male/Female: | Plug |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 3 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 3GHz
- Dielectric W/V: 500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 27N min
- Cable Retention: 200N mim
- Weight: 12.33g
- Operating Temperature: -30 to +70°C
- IP Rating (Un-Mated): IP 68
- Suitable for RG58 and similar cables in cable group AH
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: White Bronze
