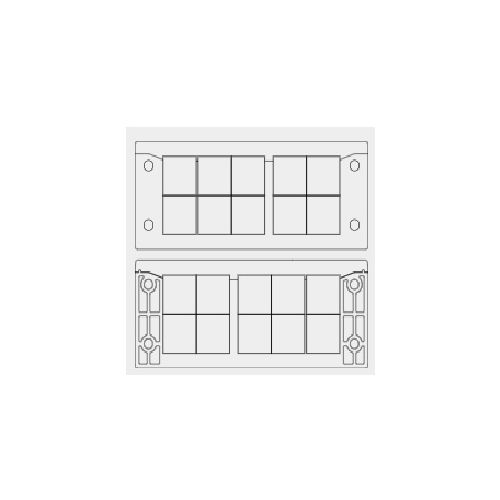

99410 | EMC-KEL-DS 24\10 | Split EMC cable entry frames
EMC-KEL-DS 24|10 | Split EMC cable entry frames, Max number of cables 10, Max cable diameter 17mm
| Complete Electronics Part No. | 99410 |
|---|---|
| Manufacturers Part No. | 99410 |
Description
Split EMC Entry Frame, IP55
- For shielding cables with connectors
- Max number of cables: 10
- Max cable diameter: 17mm
- Length: 147mm
- Width: 58mm
- Height: 40mm
- Mounting height: 40mm
- Cut out size: 112 x 36mm
- No of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanicall zinc plated
- Suitable for grommits: 10 x EMC-KT small or 10 x KT small
- IP rating (certified acc to EN 60529): IP54, IP55
- Material: Polyamide, highly conductive coating
- Flame class: UL94-V0, self-extinguishing
- Operating temperature:-40C° to 140C°
- Mounting options: Screw type mounting
- Part Number: 99410
- EAN: 4251269322679
- PU: 1
