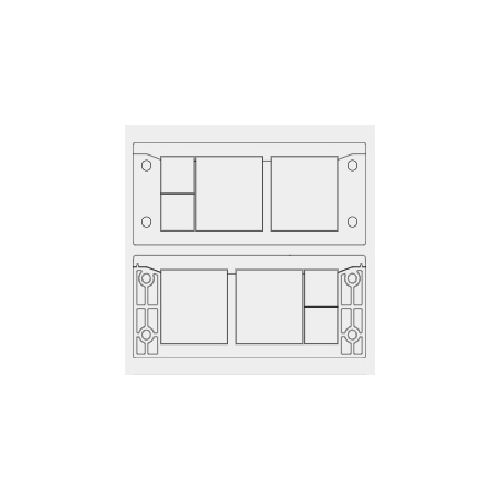

99412 | EMC-KEL-DS 24|4 | Split EMC cable entry frames
EMC-KEL-DS 24|4 | Split EMC cable entry frames, Max number of cables 4, Max cable diameter 35mm
| Complete Electronics Part No. | 99412 |
|---|---|
| Manufacturers Part No. | 99412 |
Description
Split EMC Cable Entry Frame, IP55
For shielding cables with connectors
- Max number of cables: 4
- Max cable diameter: 35mm
- Length: 147mm
- Width: 58mm
- Height: 40mm
- Mounting height: 40mm
- Cut out size: 112 x 36mm
- No of screw holes: 4
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanicall zinc plated
- Suitable for grommits: 2 x EMC-KT small & 2 x EMC KT Large
- IP rating (certified acc to EN 60529): IP54, IP55
- Material: Polyamide, highly conductive coating
- Flame class: UL94-V0, self-extinguishing
- Operating temperature:-40C° to 140C°
- Mounting options: Screw type mounting
- Part Number: 99412
- EAN: 4251269322693
- PU: 1
