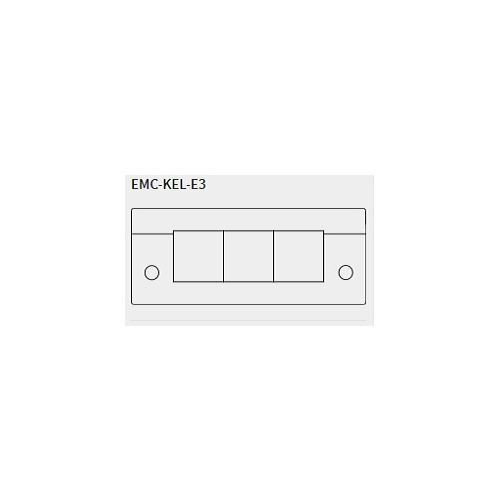

99420 | EMC-KEL-E3 | Split EMC Cable Entry Frame
Split EMC Cable Entry Frame, Frame Depth: 17mm, Cut-out: 24 x 65mm, Material: Polyamide (PA), highly conductive coating
| Complete Electronics Part No. | 99420 |
|---|---|
| Manufacturers Part No. | 99420 |
| ATEX Approval: | Not ATEX Approved |
| Series: | EMC - KEL |
| Cut Out Dimensions: | 24 x 65mm |
Description
Split EMC Cable Entry Frame
For shielding cables with connectors
Max number of cables: 3
Max cable diameter: 17mm
Length: 98mm
Width: 39mm
Height: 17mm
Mounting height: 17mm
Cut out size: 65 x 24mm
No of screw holes: 2
Diameter of screw holes: 5.8mm
Screw material: Mild steel, galvanicall zinc plated
Suitable for grommits: 3 x EMC-KT small
Material: Polyamide, highly conductive coating
Flame class: UL94-V0, self-extinguishing
Operating temperature:-40°C to 140°C
Mounting options: Screw type mounting
Vibration Proof
Part Number: 99420
EAN: 4251269319396
PU: 1
