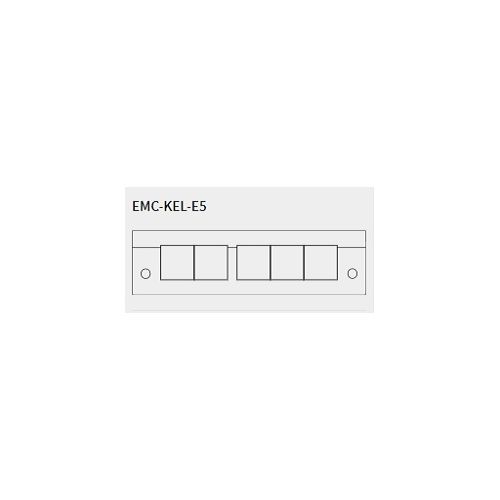

99422 | EMC-KEL-E5 | Split EMC Cable Entry Frame
Split EMC Cable Entry Frame, Frame Depth: 17mm, Cut-out: 24 x 112mm, Material: Polyamide (PA), highly conductive coating
| Complete Electronics Part No. | 99422 |
|---|---|
| Manufacturers Part No. | 99422 |
| ATEX Approval | Not ATEX Approved |
| Series | EMC - KEL |
| Cut Out Dimensions: | 24 x 112mm |
Description
Split EMC Cable Entry Frame
- For shielding cables with connectors
- Max number of cables: 5
- Max cable diameter: 17mm
- Length: 147mm
- Width: 39mm
- Height: 17mm
- Mounting height: 17mm
- Cut out size: 112 x 24mm
- No of screw holes: 2
- Diameter of screw holes: 5.8mm
- Screw material: Mild steel, galvanicall zinc plated
- Suitable for grommits: 15 x EMC-KT small
- Material: Polyamide, highly conductive coating
- Flame class: UL94-V0, self-extinguishing
- Operating temperature:-40°C to 140°C
- Mounting options: Screw type mounting
- Vibration Proof
- Part Number: 99422
- EAN: 4251269319402
- PU: 1
