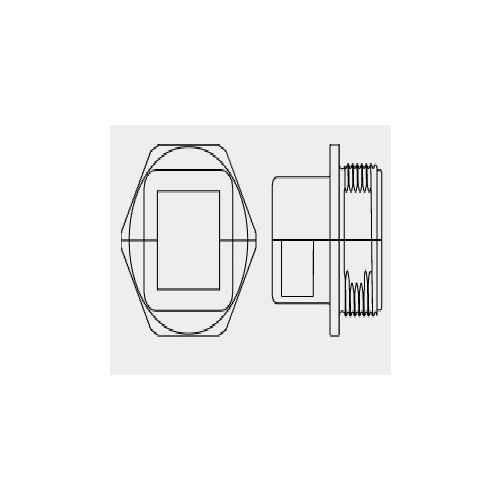

99431 | EMC-KVT-DS 32 with plastic locknut
EMC-KVT-DS 32 with plastic locknut, Max cable diameter 17mm, Max number of cables 1
| Complete Electronics Part No. | 99431 |
|---|---|
| Manufacturers Part No. | 99431 |
Description
Split EMC Cable Gland
- Max number of cables: 1
- Max cable diameter: 17mm
- Mounting height: 23mm
- Cut out size, metric: M32
- Cut out size, round: 32.3mm
- Thread: M32 x 1.5
- Thread Length: 14mm
- Suitable for grommits: 1 x KT small or 1 x EMC-KT small
- Locknut: Plastic (highly conductive coating)
- Flame class: UL94-V0, self-extinguishing
- Operating temperature:-40 C° to 90 C°
- Mounting options: Fasten with locknut
- Part Number: 99431
- EAN: 4251269321962
- PU: 5
