99436 | EMC-KVT-DS 63\4 with Plastic locknut
EMC-KVT-DS 63\4 with plastic locknut, Max cable diameter 17mm, Max number of cables 4
| Complete Electronics Part No. | 99436 |
|---|---|
| Manufacturers Part No. | 99436 |
Description

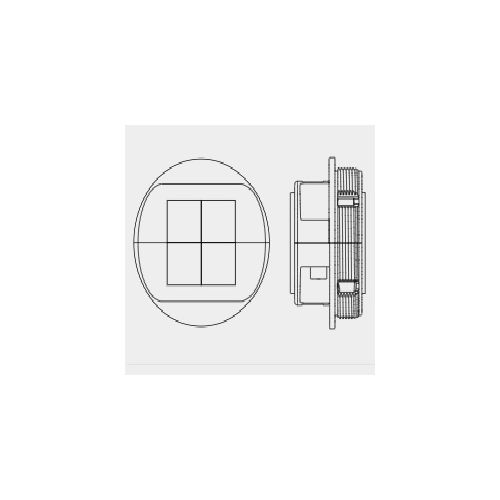

Split EMC Cable Gland
- Max number of cables: 4
- Max cable diameter: 17mm
- Mounting height: 23mm
- Cut out size, metric: M63
- Cut out size, round: 63.4mm
- Thread: M63 x 1.5
- Thread Length: 14mm
- Suitable for grommits: 4 x KT small or 4 x EMC-KT small
- Locknut: Plastic (highly conductive coating)
- Flame class: UL94-V0, self-extinguishing
- Operating temperature:-40 C° to 90 C°
- Mounting options: Fasten with locknut
- Part Number: 99436
- EAN: 4251269322600
- PU: 1
