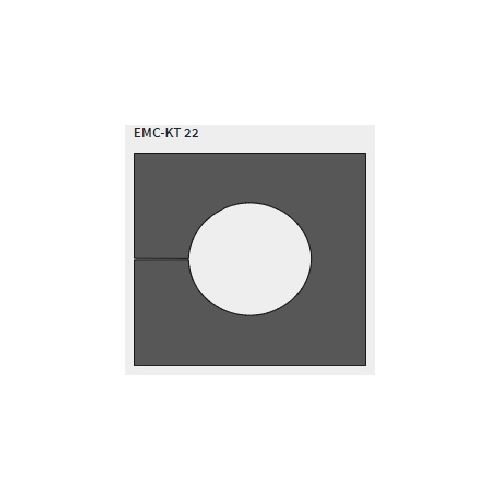

99481 | EMC-KT 22 | Large Cable Grommet
EMC - KT 22 Large Cable Grommet, Clamping Range: 22 - 23mm, Material: Elastomer, Conductive, Flame Class: UL94-HB
| Complete Electronics Part No. | 99481 |
|---|---|
| Manufacturers Part No. | 99481 |
| Clamping Range | 22mm |
| Number of Cables: | max 1 |
| Core Colour: | Black |
| ATEX Approval: | Not ATEX Approved |
| Series: | EMC - KT |
Description
EMC - KT 22 Large Cable Grommet
Clamping Range: 22 - 23 mm
Min. shield Diameter: 22 mm
Max Shield Diameter: 23 mm
Max Number of Cables: 1
Length: 41.5 mm
Width: 42 mm
Height: 19 mm
Mounting Height: 2 mm
For Round Cables
Flame Class: UL94-HB
Material: Elastomer, Conductive
Colour: Black (RAL 9001)
Temperature Rating: - 30°C to +80°C
Halogen Free
Silicone Free
Pack Unit: 5
icotek order number: 99481
EAN: 4251269319617
