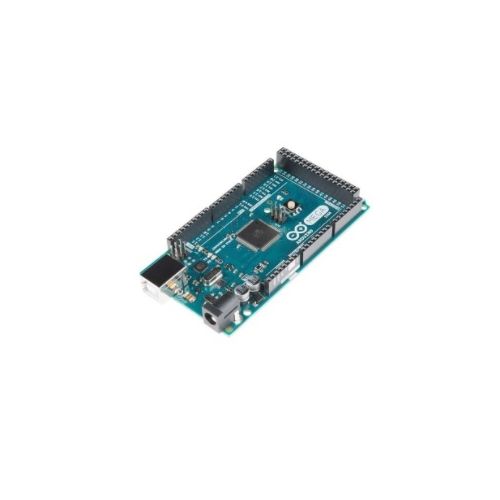

A000067 | Arduino Mega2560 rev3
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560 The Mega 2560 is an update to the Arduino Mega, which it replaces.
| Complete Electronics Part No. | A000067 |
|---|---|
| Manufacturers Part No. | A000067 |
Description
Arduino Mega2560 rev3
- Microcontroller ATmega2560
- Operating Voltage 5V
- Input Voltage (recommended) 7-12V
- Input Voltage (limits) 6-20V
- Digital I/O Pins 54 (of which 14 provide PWM output)
- Analog Input Pins 16
- DC Current per I/O Pin 40 mA
- DC Current for 3.3V Pin 50 mA
- Flash Memory 256 KB of which 8 KB used by bootloader
- SRAM 8 KB
- EEPROM 4 KB
- Clock Speed 16 MHz
