ANT-DIR-2459-01 | 2701186 | Antenna
Directional antenna, 2.4 GHz/5 GHz, gain: 9 dBi, IP67, seawater-resistant, ATEX and IECEx approval, incl. mounting bracket and mast clips
| Complete Electronics Part No. | 2701186 |
|---|---|
| Manufacturers Part No. | 2701186 |
| Ethernet Product Type: | Antenna |
Description
Antenna - ANT-DIR-2459-01

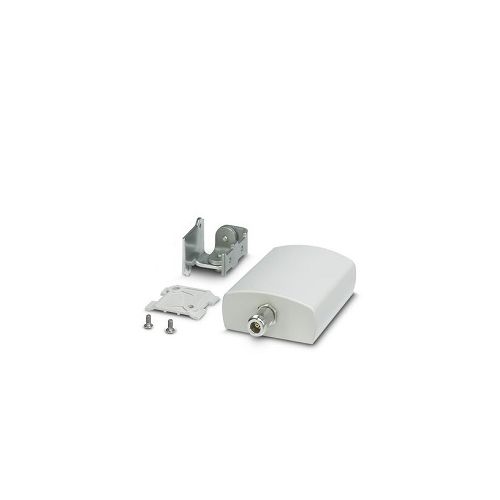

- Directional Antenna incl. mounting bracket and mast clip
- 2.4 GHz/5 GHz,
- Polarization: linear
- Opening angle: h/v 75°/55°
- Frequency: 2.4 GHz, 5 GHz (incl. DFS channels),
- Connection method: N type (female)
- Impedance: 50 Ω
- Maximun Capacity: 10.00 W
- Width: 80 mm
- Height: 101mm
- Length 35 mm
- Housing material: Lexan EXL 9330
- Bracket material: V2A
- Mast Clamp material: V2A
- Ingress protection: IP67
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 210 g
- Part Number 2701186
- Customs tariff number: 85177100
- Country of origin: PL
