ARDBOX 20 I/Os STARTER KIT

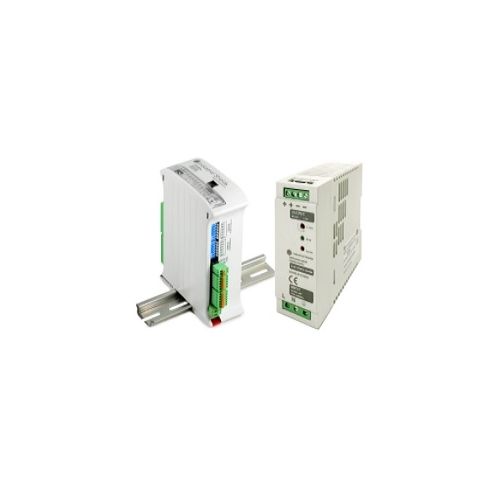

ARDBOX PLC + DIN Rail Power Supply (24Vdc, 30W) + Electrical Cable
More Information
Complete Electronics Part No. ARDBOX20IOsSTARTER KIT
Description

Arduino MODBUS PLC ARDBOX 20 I/Os STARTER KIT

  • Includes:
  • ARDBOX ANALOG 20I/OS PLC ARDUINO :
  • 10 Input
  • 10 Output
  • POWER SUPPLY 24Vdc, 30W
  • ELECTRICAL CABLE 0.75mm (x5m Blue, x5m Yellow, x5m Black)



Inputs (Arduino Leonardo included)

  • 10 x Inputs:
  • 10 x Digital (5-24Vdc).
  • 6x of 10x, Analog (0-10Vdc) configurable by Software.



Outputs (Arduino Leonardo included)

  • 10 Outputs:
  • 10x Digital isolated (5 to 24Vdc)/ (6x) of 10x, PWM (5 to 24Vdc) outputs, configurable by Switch.
  • 7x of 10x, Analog 0-10Vdc output. Configurable by Switch.

 Communications

  • 1x USB port
  • 1x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
  • 1x RS-232 port.
  • 1x HALF/FULL Duplex RS-485 port.

Other Information

  • DIN Rail mounting.
  • Flash Memory: 32kB (4kB for bootloader)
  • SRAM: 2,5kB
  • EEPROM: 1kB
  • Clock Speed: 16MHz

 *Read the manual to set the signal type.
