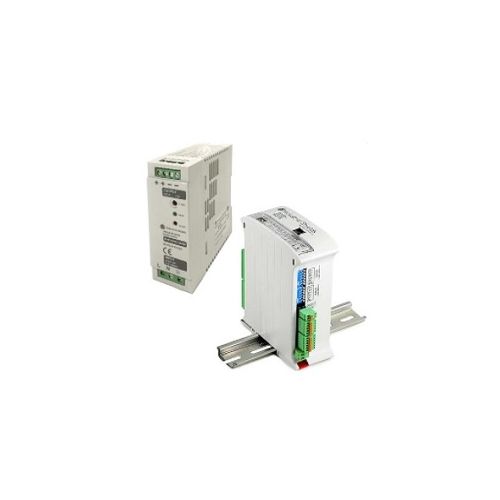

Arduino SPARTAN PLC Starter kit

Arduino SPARTAN PLC Starter kit, Includes SPARTAN PLC + Power Supply DIN Rail 30W + Electrical Cable
More Information
Complete Electronics Part No. spartanstarterkit
Description

Arduino SPARTAN PLC Starter kit

  • Includes:
  • SPARTAN PLC ARDUINO
  • 8 Input
  • 8 Output
  • POWER SUPPLY 24Vdc, 30W
  • ELECTRICAL CABLE 0.75mm (x5m Blue, x5m Yellow, x5m Black)



Inputs (Arduino Leonardo included)

  • 8 x Inputs:
  • 8 x Digital (7-24Vdc).
  • 6x of 8, Analog (0-10Vdc) configurable by Software.



Outputs (Arduino Leonardo included)

  • 8 Outputs:
  • 8x Digital isolated (5 to 24Vdc)/ (6x) of 10x, PWM (5 to 24Vdc) outputs, configurable by Switch.
  • 5x of 8, Analog 0-10Vdc output. Configurable by Switch.

 Communications

  • 1x USB port
  • 1 x Modbus (RTU)
  • 1x I2C port
  • 1 x SPI

See pinout to use communications ports because the number of inputs / outputs can be reduced.

Other Information

  • DIN Rail mounting.
  • Flash Memory: 32kB (4kB for bootloader)
  • SRAM: 2,5kB
  • EEPROM: 1kB
  • Clock Speed: 16MHz

 *Read the manual to set the signal type.
