ASB 2-RKWT 4-3-224/1,5 M | 46950 | Cordset

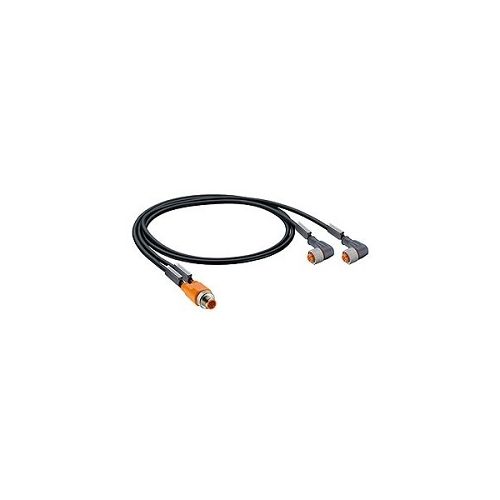

Actuator/sensor cordset, M12 Duo male connector and two M12 female right angle connectors
| Complete Electronics Part No. | 46950 |
|---|---|
| Manufacturers Part No. | 46950 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Rated Voltage: | 63V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 1.5 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-RKWT 4-3-224/1.5 M
Actuator/sensor cordset, double-ended
- M12 Duo male connector and two M12 female right angle connectors
- With self-locking threaded joint,
- 3 poles
- PUR jacket, halogen free, orange
- Length 1.5 metres.
- PUR jacket,
- Halogen free,
- Orange
