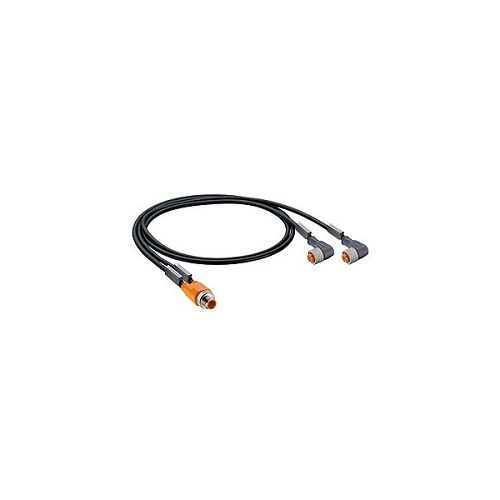

ASB 2-RKWT 4-3-251/0.3 M | 11057 | Cordset
Actuator/sensor cordset, M12 Duo male connector to two M12 female R/A connectors. 3 pole, 0.3m
| Complete Electronics Part No. | 11057 |
|---|---|
| Manufacturers Part No. | 11057 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x M12 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Rated Voltage: | 63V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 0.3 Metre |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
Actuator/sensor cordset
ASB 2-RKWT 4-3-251/0.3 M
Actuator/sensor cordset
- Double-ended
- M12 Duo male connector
- to
- Two M12 female right angle connectors
- with self-locking threaded joint,
- 3 poles
- PUR jacket,
- Halogen free,
- Orange
- Length 0.3 meters
