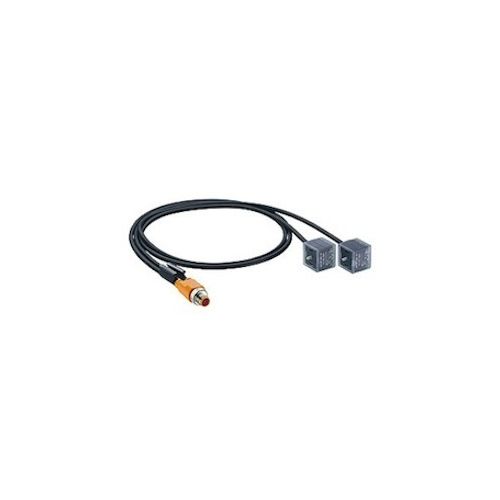

ASB 2-VAD 1A-1-3-226/0,6 M | 44242 | M12 Cordset
Actuator/Sensor Cordset, Double ended, M12 Duo male connector to two valve connectors, Length 0.6 metres
| Complete Electronics Part No. | 44242 |
|---|---|
| Manufacturers Part No. | 44242 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x Valve Connectors |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | A |
| Rated Voltage: | 32V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 0.6 Metre |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-VAD 1A-1-3-226/0,6 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- To
- Two valve connectors according to DIN EN 175301 803,
- Form A
- Cable exit 0° and 180° 5 Pole
- Length 0,6 metre
-
PUR jacket
-
Halogen free -
Black
