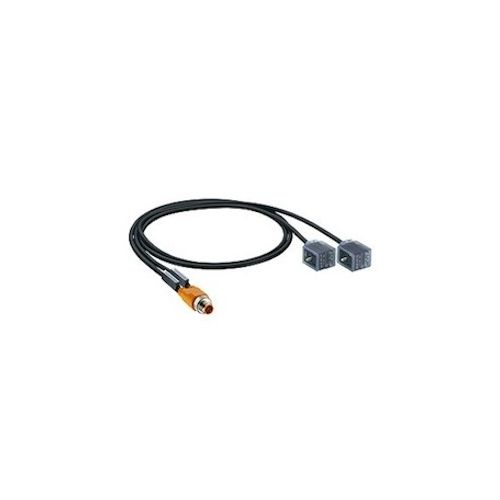

ASB 2-VB 1A-1-1-226/0,6 M | 44391 | Cordset
Actuator/Sensor Cordset, Double ended. M12 Duo male to Two valve connectors, 5 Pole, 0.6m
| Complete Electronics Part No. | 44391 |
|---|---|
| Manufacturers Part No. | 44391 |
| Type: | Actuator Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x Valve Connectors |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | B |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 0.6 Metre |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-VB 1A-1-1-226/0,6 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- To
- Two valve connectors according to DIN EN 175301 803, Form B IND
- Cable exit 0°
- 5 Pole
- 0,6 Meter
- PUR jacket
- Halogen free
- Black
