ASB 2-VB 1A-1-1-226/5 M | 48378 | Cordset

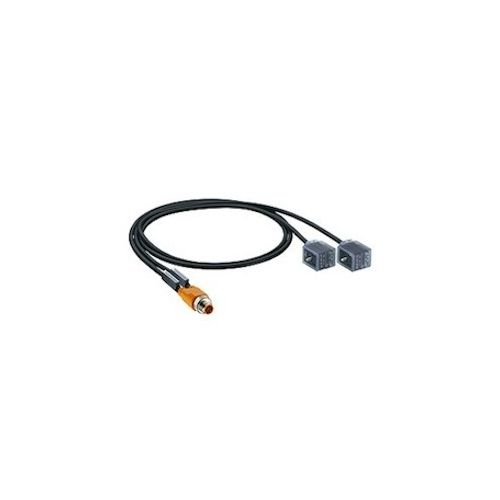

Actuator/Sensor Cordset, Double ended M12 Duo male to Two valve connectors, 5 pole. 5 metres
| Complete Electronics Part No. | 48378 |
|---|---|
| Manufacturers Part No. | 48378 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x Valve Connectors |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | B |
| Rated Voltage: | 32V |
| Rated Current: | 4A |
| Cable Length: | 5 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-VB 1A-1-1-226/5 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- to
- Two valve connectors according to DIN EN 175301 803, Form B IND
- Cable exit 0°
- 5 Pole
- 5 Meter
- PUR jacket
- Halogen free
- Black
***Product End of Life Notice***
***Last Order Date:- September 27th 2019***
