ASB 2-VC 1A-1-3-226/2 M | 43800 | Cordset Form C IND

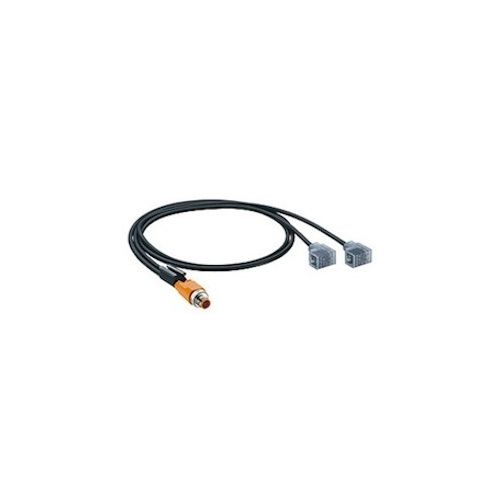

Actuator/Sensor Cordset, Double ended, M12 Duo to two valve connectors, 5 pole, 2m
| Complete Electronics Part No. | 43800 |
|---|---|
| Manufacturers Part No. | 43800 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x Valve Connectors |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | C |
| Rated Voltage: | 32V |
| Rated Current: | 4A at 40°C |
| Cable Length: | 2 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-VC 1A-1-3-226/2 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- To
- Two valve connectors according to DIN EN 175301 803
- Form C IND (9.4 mm)
- Cable exit 0° and 180°
- 5 Pole
- 2 Metre
- PUR jacket
- Halogen free
- Black
