BAR-ANT-N-N-EX | 2702198 | Antenna Barrier
Antenna barrier for control cabinet feed-through, type of protection: Ex i, degree of protection: IP65, barrier installation: Zone 2 / 22
| Complete Electronics Part No. | 2702198 |
|---|---|
| Manufacturers Part No. | 2702198 |
| Ethernet Product Type: | Adapter |
Description

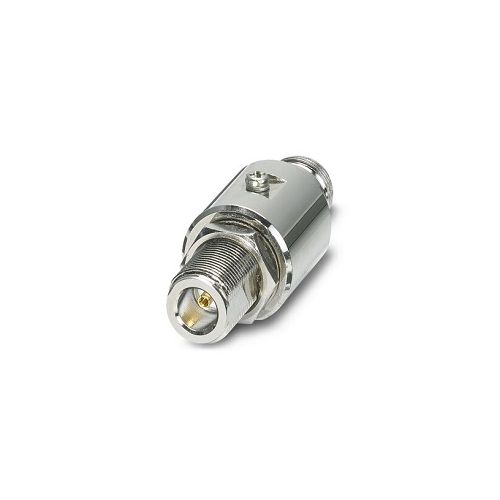

Antenna Barrier - BAR-ANT-N-N-EX
- Compact housing design
- International approvals
- Use of standard antennas in the hazardous area of zone 0, 1, and 2
- TEX, EAC Ex and IECEx approval
- N type Female to N type Female
- Universal use (frequency range of 0.3 ... 6 GHz)
- Supply of all necessary certified components – including as a system solution
- Inexpensive solution, as there is no need for expensive special antennas
- Impedance: 50 Ω
- Insulation voltage input/output: 375 V AC/DC
- Width: 25 mm
- Height: 25 mm
- Depth: 68.8 mm
- Seal Material: Silicon
- Housing material: Nickel-plated brass
- Contact Material: Gold Plated CuZn
- Ingress Protection: IP65
- Operating Temperature: -40°C ... 75°C
- Weight per Piece (excluding packing): 160 g
- Part Number 2702198
- Customs tariff number: 85177100
- Country of origin: TW
