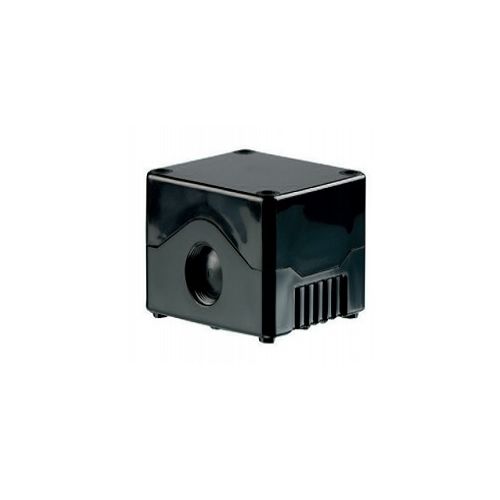

BEA01S-ABS | BE Enclosure 80 x 72 x 53mm
Slotted mounting holes, 66.2 x 58.8mm, 2 x M20 threaded knock-outs, for use with M20 glands, PCB mounting posts suitable for M3 self tapping screws
| Complete Electronics Part No. | BEA01SABS |
|---|---|
| Manufacturers Part No. | BEA01S-ABS |
| Material / Type | ABS |
| Enclosure Length: | 51mm to 100mm |
| IP Rating: | IP67 |
Description
BE Enclosure 80 x 72 x 53mm
- Dimensions: 80 x 72 x 53mm
- Slotted mounting holes, 66.2 x 58.8mm
- 2 x M20 threaded knock-outs suitable for use with M20 glands
- Option for single pre-drilled 22mm Ø hole in lid
- PCB mounting posts suitable for M3 self tapping screws
- Grey or black base
- Transparent, black, grey or yellow lid
- Sealing: IP67
- Material: ABS
- Flammability rating: UL94HB
- Gasket: TPE
- Temperature rating: –20ºC to +85ºC
Accessories:
- Wall mounting brackets
- Combifoot - TS32 & TS35 din rail mounting
- M20 cable glands for use in knock-outs
Variants:-
BEP01SGT0: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid
BEP01SGT1: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Transparent Lid
BEA01SBT0: Black Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Transparent Lid
BEA01SBT1: Black Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Transparent Lid
BEA01SGT0: Grey Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Transparent Lid
BEA01SGT1: Grey Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Transparent Lid
BEP01SBT0: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid
BEP01SBT1: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Transparent Lid
BEA01SBB0: Black Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Black Lid
BEA01SBB0: Black Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Black Lid
BEA01SGB0: Grey Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Black Lid
BEA01SGB1: Grey Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Black Lid
BEP01SBB0: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Black Lid
BEP01SBB1: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Black Lid
BEP01SGB0: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Black Lid
BEP01SGB1: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Black Lid
BEA01SBG0: Black Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid
BEA01SBG1: Black Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Grey Lid
BEA01SGG0: Grey Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid
BEA01SGG1: Grey Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Grey Lid
BEP01SBG0: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid
BEP01SBG1: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Grey Lid
BEP01SGG0: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid
BEP01SGG1: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Grey Lid
BEA01SBY0: Black Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid
BEA01SBY1: Black Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Yellow Lid
BEA01SGY0: Grey Base, ABS, 72 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid
BEA01SGY1: Grey Base, ABS, 72 mm, –20ºC to +85ºC, 1 Lid Hole, Yellow Lid
BEP01SBY0: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid
BEP01SBY1: Black Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Yellow Lid
BEP01SGY0: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid
BEP01SGY1: Grey Base, Polycarbonate, 72 mm, –20ºC to +100ºC, 1 Lid Hole, Yellow Lid
