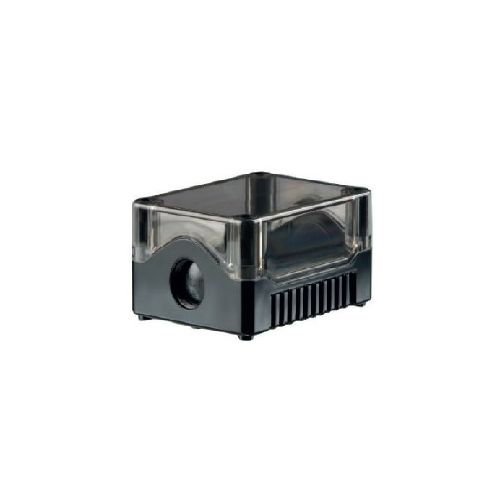

BE Enclosure 80 x 106 x 53mm

• Dimensions: 80 x 106 x 53mm
• Slotted mounting holes, 66.2 x 92.0mm
• 2 x M20 threaded knock-outs suitable for use with M20 glands
• Option for two pre-drilled 22mm Ø hole in lid
• PCB mounting posts suitable for M3 self tapping screws
• Grey or black base
• Transparent, black, grey or yellow lid
• Sealing: IP67
• Material: ABS
• Flammability rating: UL94HB
• Gasket: TPE
• Temperature rating: –20ºC to +85ºC

Accessories:-

• Wall mounting brackets
• Combifoot - TS32 & TS35 din rail mounting
• M20 cable glands for use in knock-outs

 Variants:-

BEP02SGT0:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid

BEP02SGT1:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Transparent Lid

BEP02SGT0:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid

BEP02SGT1:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Transparent Lid

BEA02SBT0:   Black Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Transparent Lid

BEA02SBT1:   Black Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Transparent Lid

BEA02SGT0:   Grey Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Transparent Lid

BEA02SGT1:   Grey Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Transparent Lid

BEP02SBT0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid

BEP02SBT1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Transparent Lid

BEA02SBB0:   Black Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Black Lid

BEA02SBB1:   Black Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Black Lid

BEA02SGB0:   Grey Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Black Lid

BEA02SGB1:   Grey Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Black Lid

BEP02SBB0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Black Lid

BEP02SBB1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Black Lid

BEP02SGB0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Black Lid

BEP02SGB1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Black Lid

BE0A2SBG0:   Black Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid

BEA02SBG1:   Black Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Grey Lid

BEA02SGG1:   Grey Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Grey Lid

BEA02SGG0:   Grey Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid

BEP02SBG0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid

BEP02SBG1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Grey Lid

BEP02SGG0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid

BEP02SGG1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Grey Lid

BEP02SGY1:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Yellow  Lid

BEP02SGY0:   Grey Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid

BEA02SBY0:   Black Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid

BEA02SBY1:   Black Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Yellow Lid

BEA02SGY0:   Grey Base, ABS 106 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid

BEA02SGY1:   Grey Base, ABS 106 mm, –20ºC to +85ºC, 2 Lid Holes, Yellow Lid

BEP02SBY0:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid

BEP02SBY1:   Black Base, Polycarbonate 106 mm, –20ºC to +100ºC, 2 Lid Holes, Yellow Lid
