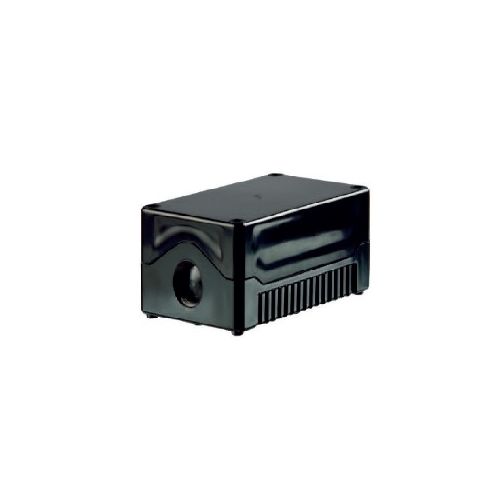

BEA03S-ABS | BE Enclosure 80 x 139 x 53mm
Slotted mounting holes, 66.2 x 125mm, 2 x M20 threaded knock-outs, for use with M20 glands, PCB mounting posts suitable for M3 self tapping screws
| Complete Electronics Part No. | BEA03SABS |
|---|---|
| Manufacturers Part No. | BEA03S-ABS |
| Material / Type | ABS |
| Enclosure Length: | 101mm to 150mm |
| IP Rating: | IP67 |
Description
BE Enclosure 80 x 139 x 53mm
- Dimensions: 80 x 139 x 53mm
- Slotted mounting holes, 66.2 x 125mm
- 2 x M20 threaded knock-outs suitable for use with M20 glands
- Option for three pre-drilled 22mm Ø hole in lid
- PCB mounting posts suitable for M3 self tapping screws
- Grey or black base
- Transparent, black, grey or yellow lid
- Sealing: IP67
- Material: ABS
- Flammability rating: UL94HB
- Gasket: TPE
- Temperature rating: –20ºC to +85ºC
Accessories:-
- Wall mounting brackets
- Combifoot - TS32 & TS35 din rail mounting
- M20 cable glands for use in knock-outs
Variants:-
BEP03SGT0: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid
BEP03SGT1: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Transparent Lid
BEP03SBT0: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Transparent Lid
BEP03SBT1: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Transparent Lid
BEA03SBT0: Black Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Transparent Lid
BEA03SBT1: Black Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Transparent Lid
BEA03SGT0: Grey Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Tranparent Lid
BEA03SGT1: Grey Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Tranparent Lid
BEP03SBB0: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Black Lid
BEP03SBB1: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Black Lid
BEP03SGB1: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Black Lid
BEP03SGB0: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Black Lid
BEA03SBB0: Black Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Black Lid
BEA03SBB1: Black Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Black Lid
BEA03SGB0: Grey Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Black Lid
BEA03SGB1: Grey Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Black Lid
BEP03SBG0: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid
BEP03SBG1: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Grey Lid
BEP03SGG0: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Grey Lid
BEP03SGG1: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Grey Lid
BEA03SBG0: Black Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid
BEA03SBG1: Black Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Grey Lid
BEA03SGG0: Grey Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Grey Lid
BEA03SGG1: Grey Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Grey Lid
BEP03SBY0: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid
BEP03SBY1: Black Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Yellow Lid
BEP03SGY0: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, No Lid Holes, Yellow Lid
BEP03SGY1: Grey Base, Polycarbonate 139 mm, –20ºC to +100ºC, 3 Lid Holes, Yellow Lid
BEA03SBY0: Black Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid
BEA03SBY1: Black Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Yellow Lid
BEA03SGY0: Grey Base, ABS, 139 mm, –20ºC to +85ºC, No Lid Holes, Yellow Lid
BEA03SGY1: Grey Base, ABS, 139 mm, –20ºC to +85ºC, 3 Lid Holes, Yellow Lid
