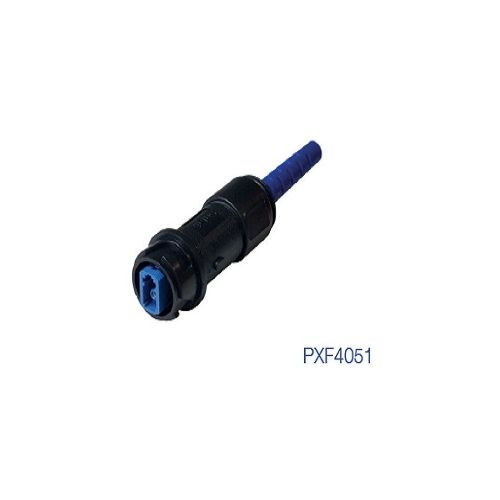

Bulgin PXF 4051 | Simplex LC Fiber Connector
4000 Series - Simplex LC Fiber Buccaneer, In-Line flex cable connector, IP68 connector without LC connector
| Complete Electronics Part No. | PXF4051 |
|---|---|
| Manufacturers Part No. | PXF4051 |
Description
4000 Series - Simplex LC Fiber Buccaneer
In-LineFlex Cable Connector
Mates with PXF4050
Supplied without LC connector
Ingress Protection: IP66\68\69k
Marine Severity Level 1
Operating temperature: -25°C to +70°C
Body Moulding: Polyamide
Body Length: 80.2mm
Part Number Examples:
PXF4050 = Flex connector, no cable
PXF4050AAA = Flex connector, OS1 single mode cable, 5 metre length to LC type connector
PXF4053BAA = Panel mount connector, OM1 multi mode cable, 1 metre length to LC type connector
Body Styles | Cable Type | Cable Length (metres)
PXF4051 | Blank = No Cable | Blank = No Cable
PXF4051 | A = OS1 (Singlemode) | AA = 1(1M on chassis version only PFX 4053
PXF4053 | B = OM1 (Multimode) | AA = 5
PXF4054 | C = OM3 (Multimode) | AB = 10
PXF4055 | | AC = 25
| | AD = 50
| | AE = 100
| | AF = 150
| | AG = 200
| | AH = 300
| | AJ = 25
