BVA01/Z0000/01 | BVA01Z000001 | Bulgin IEC

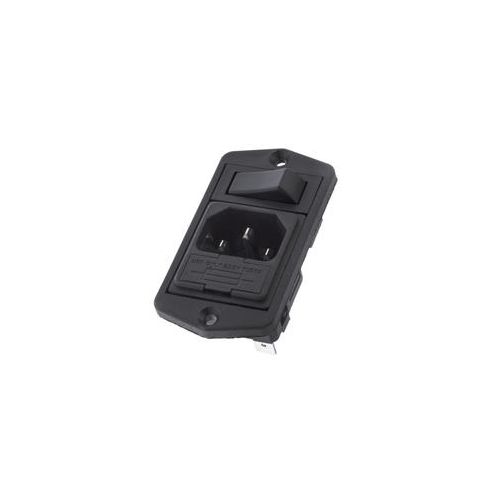

Polysnap - Polyflange C14 IEC Fused Inlet with a Single Pole Switch
| Complete Electronics Part No. | BVA01Z000001 |
|---|---|
| Manufacturers Part No. | BVA01/Z0000/01 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Top / Bottom Screw Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Single Pole |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BVA01Z000001
C14 IEC Fused Inlet with a Single Pole Switch
- Cold Condition
- Panel Mount
- Top/Bottom Screw Fixing
- 6.3mm Tags
- 10Amp
- 250Vac
- -40°C/+70°C
