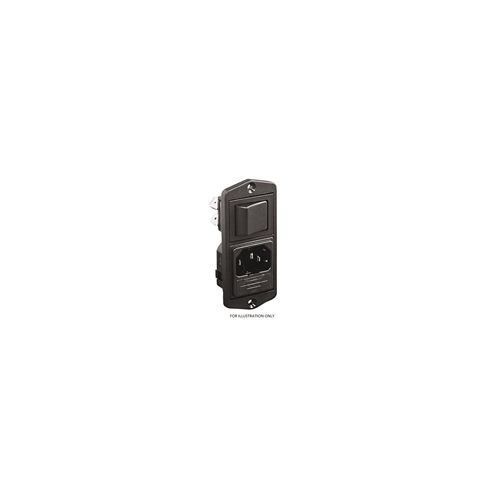

BVA01/Z0000/13 | BVA01Z000013 | Polysnap IEC Inlet
Polyflange Single Fused IEC Power Inlet with double pole high inrush switch, top fixing
| Complete Electronics Part No. | BVA01Z000013 |
|---|---|
| Manufacturers Part No. | BVA01/Z0000/13 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Side Screw Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Double Pole - High Inrush |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BVA01Z000013
Polyflange Fused IEC Power Inlet
- Single Fuse: 5 x 20mm
- Single Fused IEC Power Inlet with double pole high inrush switch, top fixing
- 6.3mm tab
- Vertical
- Snap To Panel Panel Mount
- Rated Current: 10A
- Rated Voltage: 250V ac
- Class C14
