BZM27/A0620/59B | BZM27A062059B | Bulgin IEC

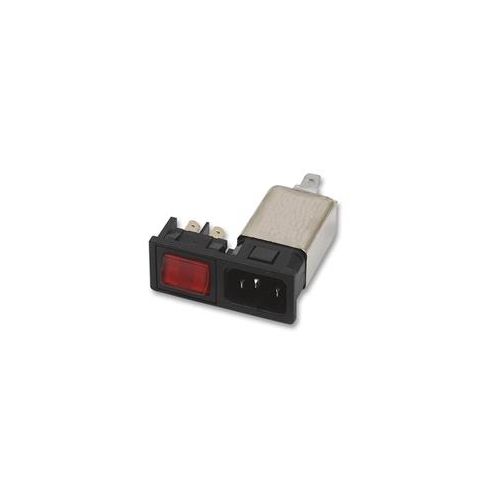

Polysnap - C14 IEC Mini Bezel Filtered Inlet with a DP Red Neon Switch
| Complete Electronics Part No. | BZM27A062059B |
|---|---|
| Manufacturers Part No. | BZM27/A0620/59B |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| EMI Filter | Yes |
| Mounting: | Mini Bezel |
| Module Arrangement | Horizontal |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Double Pole with Red Neon (Filtered) |
| Fuse Size: | Non Fused |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZM27A062059B
Polysnap - C14 IEC Mini Bezel Filtered Inlet
- With a DP Red Neon Switch
- Cold Condition
- Panel Mount (1.5mm)
- Snap in
- 6.3mm Tags (Inlet)
- 4.8mm Tags (Switch)
- 10Amp
- 250Vac
- -40°C/+70°C
