BZM42/Z0000/53B | BZM42Z000053B | Bulgin IEC

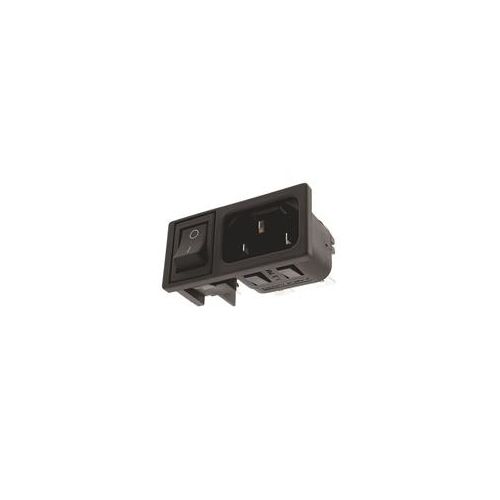

Polysnap - C14 IEC Mini Bezel Inlet with a SP Switch (I/O)
| Complete Electronics Part No. | BZM42Z000053B |
|---|---|
| Manufacturers Part No. | BZM42/Z0000/53B |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Mini Bezel |
| Module Arrangement | Horizontal |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Single Pole |
| Fuse Size: | Non Fused |
| Termination: | 4.8mm Spade Terminal |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
"
BZM42Z000053B
Polysnap - C14 IEC Mini Bezel Inlet
- With a SP Switch (I/O)
- Switch Marked I/O
- Cold Condition
- Panel Mount (1.5mm)
- Snap in
- 4.8mm Tags (Inlet
- 4.8mm Tags (Switch)
- 10Amp
- 250Vac
- -40°C/+70°C
