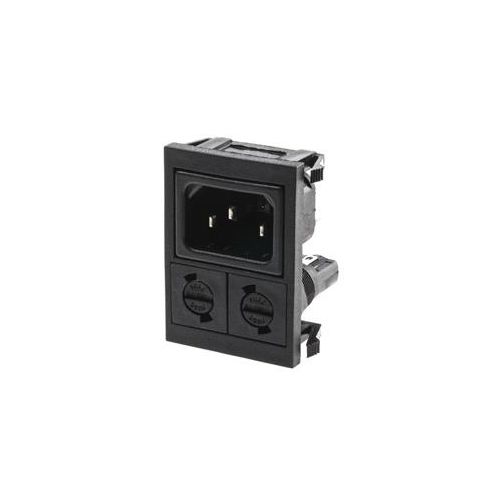

BZV03/Z0000/04 | BZV03Z000004 | Bulgin IEC
Polysnap Vertical - C14 IEC Inlet with 2 Fuseholders
| Complete Electronics Part No. | BZV03Z000004 |
|---|---|
| Manufacturers Part No. | BZV03/Z0000/04 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | No Switch |
| Fuse Size: | Twin 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZV03/Z0000/04
Polysnap Vertical - C14 IEC Inlet
- 2 Fuseholders
- Cold Condition
- Panel Mount
- Snap in
- 6.3mm Tags (Inlet)
- 10Amp
- 250Vac
- -40°C/+70°C
