BZV05/Z0000/15 | BZV05Z000015 | Bulgin IEC

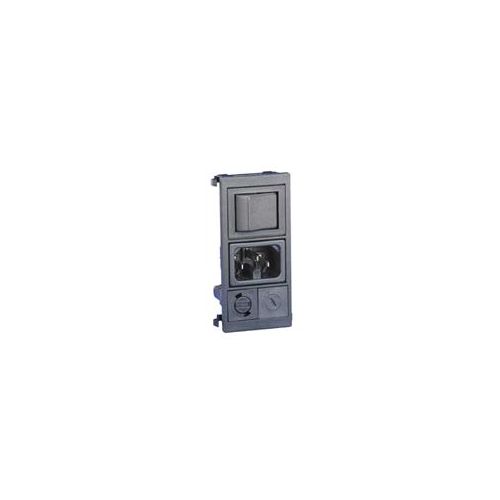

Polysnap Vertical - C16 IEC Inlet with a Voltage Selector 120 / 240V ac, Fuse Holder and a Double Pole Switch
| Complete Electronics Part No. | BZV05Z000015 |
|---|---|
| Manufacturers Part No. | BZV05/Z0000/15 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C16 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Voltage Selector | 120 / 240 Vac |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type | Double Pole |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
| Temperature | Hot Condition |
Description
BZV05/Z0000/15
Polysnap Vertical - C16 IEC Inlet
- Voltage Selector 120 / 240V ac
- Fuse Holder
- Double Pole Switch
- Hot Condition
- Panel Mount
- Snap in
- 6.3mm Tags (Inlet)
- 6.3Amp
- 250Vac
- -40°C/+70°C
