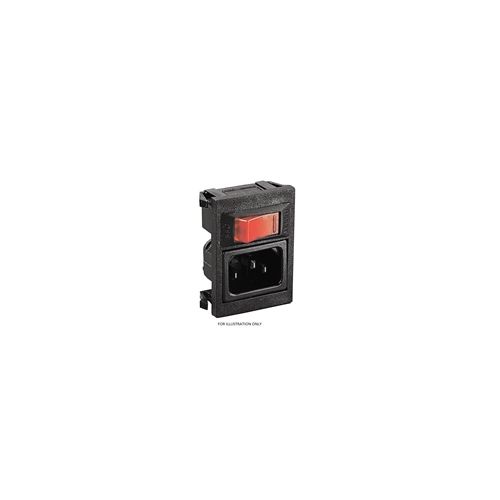

BZV06/Z0000/14 | BZV06Z000014 | Polysnap IEC Inlet
Polysnap IEC Power Inlet with voltage selector, Twin fuseholder
| Complete Electronics Part No. | BZV06Z000014 |
|---|---|
| Manufacturers Part No. | BZV06/Z0000/14 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C16 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Voltage Selector | 120 / 240 Vac |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | No Switch |
| Fuse Size: | Twin 5 x 20mm |
| Termination: | 2.8mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 6.3A |
Description
BZV06Z000014
Polysnap Fused IEC Power Inlet
- Twin Fuse: 5 x 20mm
- Voltage Selector 120 / 240V ac
- 2.8mm tab
- Vertical
- Snap To Panel Panel Mount
- Rated Current: 6.3A
- Rated Voltage: 250V ac
- Class C16
