BZV09Z000037 | BZV09/Z0000/37 | Bulgin IEC

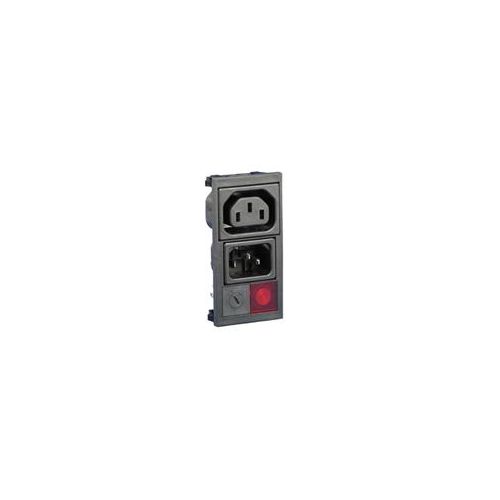

Polysnap - Vertical C14 IEC Inlet / Sheet F IEC Outlet with Voltage Selector and 110V Red Neon Indicator
| Complete Electronics Part No. | BZV09Z000037 |
|---|---|
| Manufacturers Part No. | BZV09/Z0000/37 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet / Outlet |
| IEC Class | Sheet C14 Class I & Sheet F Class I |
| Number of Inlets / Outlets | 1 / 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Voltage Selector | 120 / 240 Vac |
| Number of poles | 3 |
| Male/Female: | Male and Female |
| Switch Type: | No Switch - Red Neon |
| Fuse Size: | Non Fused |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZV09Z000037
Polysnap - Vertical C14 IEC Inlet / Sheet F IEC Outlet with Voltage Selector and 110V Red Neon Indicator
- Cold Condition
- Panel Mounting
- Snap in
- 6.3mm Tags (Inlet/Outlet)
- 10Amp
- 250Vac
- -40°C/+70°C
