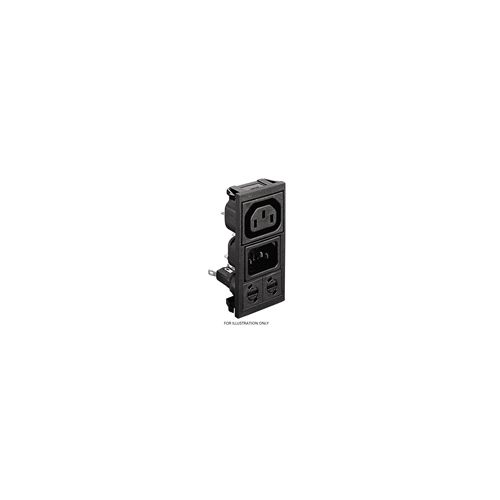

BZV18/Z0000/43 | BZV18Z000043 | Polysnap IEC Inlet / Outlet
Polysnap IEC Power Inlet, sheet F shuttered power outlet, fuseholder, 250v, red neon
| Complete Electronics Part No. | BZV18Z000043 |
|---|---|
| Manufacturers Part No. | BZV18/Z0000/43 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet / Outlet |
| IEC Class | Sheet C14 Class I & Sheet F Class I |
| Number of Inlets / Outlets | 1 / 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male and Female |
| Switch Type: | No Switch - Red Neon |
| Fuse Size: | 5 x 20mm |
| Termination: | 2.8mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZV18Z000043
Polysnap Fused IEC Power Inlet/Outlet
- Single Fuse: 5 x 20mm
- Shuttered power outlet
- Fuseholder
- 250v
- Red neon
- 2.8mm tab
- Vertical
- Snap To Panel Panel Mount
- Rated Current: 10A
- Rated Voltage: 250V ac
- Class C14 inlet
- Sheet F outlet
