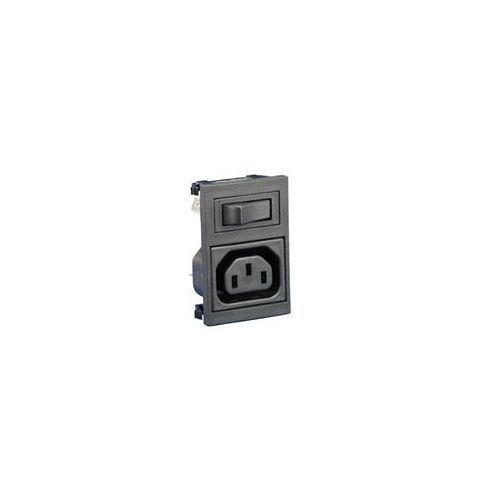

BZV45/Z0000/01 | BZV45Z000001 | Bulgin IEC
Polysnap - Sheet F IEC Vertical Outlet with a SP Switch
| Complete Electronics Part No. | BZV45Z000001 |
|---|---|
| Manufacturers Part No. | BZV45/Z0000/01 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Outlet |
| IEC Class | Sheet C14 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Female |
| Switch Type: | Single Pole |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZV45/Z0000/01
Polysnap - Sheet F IEC Vertical Outlet
-
- With a SP Switch
- Panel Mount
- Snap in
- 6.3mm Tags (outlet)
- 10Amp
- 250Vac
- -40°C/+70°C
