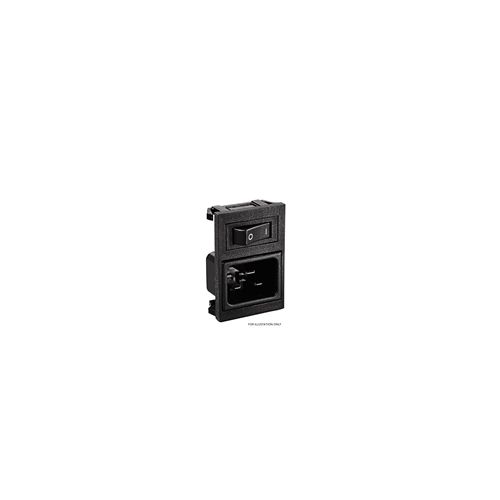

BZV49/Z0000/69 | BZV49Z000069 | Polysnap IEC Inlet
Polysnap IEC Power Inlet with single pole marked switch
| Complete Electronics Part No. | BZV49Z000069 |
|---|---|
| Manufacturers Part No. | BZV49/Z0000/69 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet - Fused |
| IEC Class | Sheet C20 Class 1 |
| Number of Inlets / Outlets | 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Single Pole |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 16A |
Description
BZV49Z000069
Polysnap Fused IEC Power Inlet
- Single Fuse: 5 x 20mm
- single pole marked I/O switch
- 6.3mm tab
- Vertical
- Snap To Panel Panel Mount
- Rated Current: 16A
- Rated Voltage: 250V ac
- Class C20
