CASCO MIMO LTE | Wideband Telemetary Antenna
Rugged wideband body mounted antenna, LTE-4G, Cellular (2G, 3G)
| Complete Electronics Part No. | MIMOLTE |
|---|---|
| Manufacturers Part No. | CASCO MIMO LTE |
| Antenna Type: | Body/Panel Mount |
Description

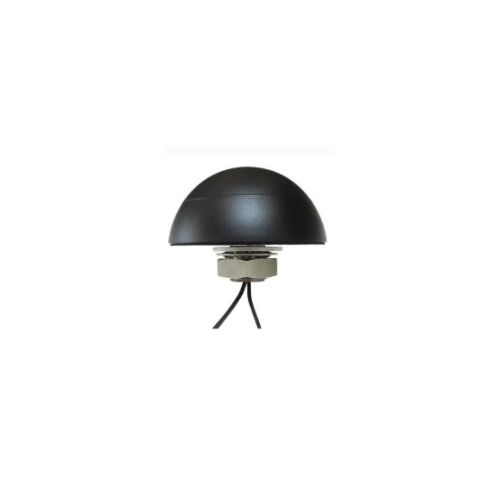

Casco MIMO LTE Antenna
Rugged, robust versatile body mounted antenna
- Designed for use in harsh environments
- Providing excellent performance across the LTE spectrum
- MIMO Cellular LTE / 2G / 3G (2 Cables)
- Two radiating elements are encapsulated within a UV stable ABS housing
- An M27 through bolt ensures a solid electrical and mechanical connection.
- Dimensions: 53mm (H) Above panel height x 110mm Diameter
- Weight: 376g (Excluding Cable)
- Impedance 50 Ohm
- LTE 700 + GSM 900
- GSM 1800
- UMTS
- LTE (high)
- Omni Directional
- Polarisation: Linear
- Max Power @ 30C 35 Watts
- Temperature Range: -40°C to +85°C
- Protection Class: IP67 / IK09 (IEC 60529)
