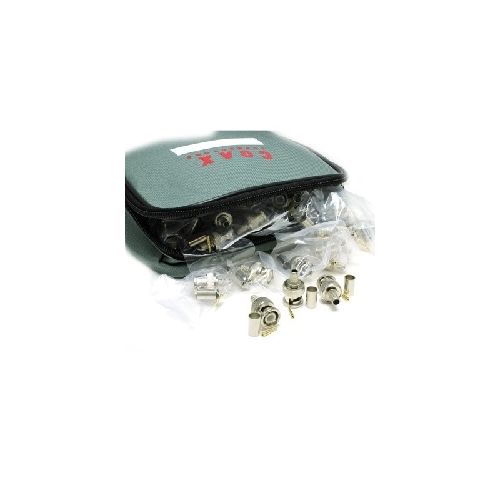

Coax Pack 1000 | Coax Pack of 100 - BNC True 75 ohm plugs
Coax Pack of 100 - BNC True 75 ohm straight crimp plugs, Suitable for Image 1000 or similar cables in group FC
| Complete Electronics Part No. | Coax Pack 1000 |
|---|---|
| Manufacturers Part No. | Coax Pack 1000 |
| Working Frequency | Up To 4.5 GHZ |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 4.5GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss: [email protected]
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Retention: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 50N min
- Weight: 11.4g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Bayonet Cap: Zinc
- Pack Size 100
