Low Capacitance Cables
Screened data transmission cable
- With low capacitance
- Transmission rates up to 10 Mbps
- For fixed and limited flexible installation
- Can be used in dry or damp rooms
- Flame-retardant according IEC 60332-1-2
- Designed for indoor and outdoor use
- Twisted Pair (TP) structure
- Tinned-copper braiding
-
0034063 | UNITRONIC Li2YCY PIMF 5X2X0,5 | Low Frequency CableUNITRONIC Li2YCY PIMF 5X2X0,5, Low-frequency screened PVC data cable , Number of conductors: 5 x 2 Twisted Pair, Condutor Diameter: 0.5mm²
-
0034064 | UNITRONIC Li2YCY PIMF 8X2X0,5 | Low Capacitance CableUNITRONIC Li2YCY PIMF 8X2X0,5, Low-Frequency screened PVC data cable , Number of conductors: 8 x 2 Twisted Pair, Condutor Diameter: 0.5mm²
-
0034065 | UNITRONIC Li2YCY PIMF 10X2X0,5 | Low Capacitance CableUNITRONIC Li2YCY PIMF 10X2X0,5, Low-frequency screened PVC data cable , Number of conductors: 10 x 2 Twisted Pair, Condutor Diameter: 0.5mm²
-
0034070 | UNITRONIC Li2YCY PIMF 2X2X1 | Low Capacitance CableUNITRONIC Li2YCY PIMF 2X2X1, Low-frequency screened PVC data cable (Fine Wire), Number of conductors: 2 x 2 Twisted Pair, Condutor Diameter: 1.0mm²
-
0034071 | UNITRONIC Li2YCY PIMF 3X2X1 | Low Capacitance CableUNITRONIC Li2YCY PIMF 3X2X1, Low-Frequency screened PVC data cable (Fine Wire), Number of conductors: 3 x 2 Twisted Pair, Condutor Diameter: 1.0mm²
-
0034072 | UNITRONIC Li2YCY PIMF 4X2X1 | Low Frequency CableUNITRONIC Li2YCY PIMF 4X2X1, Low-Frequency screened PVC data cable (Fine Wire), Number of conductors: 4 x 2 Twisted Pair, Conductor Diameter: 1.0mm²
-

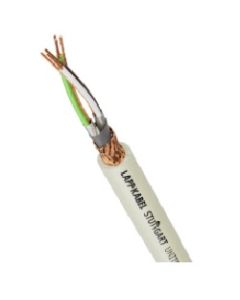

0034073 | UNITRONIC Li2YCY PIMF 10X2X1 | Low Capacitance CableUNITRONIC Li2YCY PIMF 10X2X1, Low-capacitance screened PVC data cable (Fine Wire), Number of conductors: 10 x 2 Twisted Pair, Condutor Diameter: 1.0mm²
