Low Frequency Halogen Free Cable
Data Transmission Cable
- Fine wire / multi wire
- Low Smoke
- Zero Halogen
- Approvals: Based on VDE 0812
Lapp Cable Series:-
- Unitronic Robust
- Unitronic Robust C
- Unitronic Robust C (TP)
- Unitronic LiHH
- Unitronic LiHCH
- Unitronic LiHCH (TP)
- The shown product values are nominal values
- Photographs and graphics are not to scale
- Photographs may not represent detailed images of the respective products
-
1032081 | UNITRONIC ROBUST C 10X0,34 | Halogen Free CableScreened Halogen free data transmission cable, Number of Conductors: 10, Conductor Diameter: 0.34mm², Outer Cable Diameter: 8.3mm -
1032082 | UNITRONIC ROBUST C 12X0,34 | Halogen Free CableScreened Halogen free data transmission cable, Number of Conductors: 12, Conductor Diameter: 0.34mm², Outer Cable Diameter: 8.5mm -

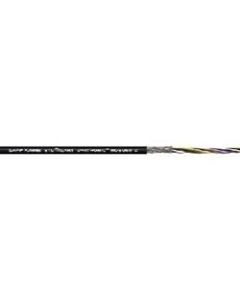

1032084 | UNITRONIC ROBUST C 16X0,34 | Halogen Free CableScreened Halogen free data transmission cable, Number of Conductors: 16, Conductor Diameter: 0.34mm², Outer Cable Diameter: 9.4mm -
1032086 | UNITRONIC ROBUST C 25X0,34 | Halogen Free CableScreened Halogen free data transmission cable, Number of Conductors: 25, Conductor Diameter: 0.34mm², Outer Cable Diameter: 11.9mm -
1032100 | UNITRONIC ROBUST C (TP) 2X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 2 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 5.3mm -
1032101 | UNITRONIC ROBUST C (TP) 3X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 3 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 5.8mm -
1032102 | UNITRONIC ROBUST C (TP) 4X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 4 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 6.2mm -
1032103 | UNITRONIC ROBUST C (TP) 5X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 5 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 6.4mm -

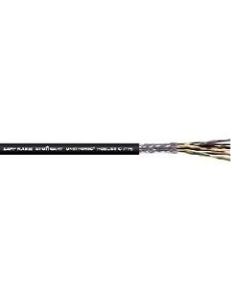

1032104 | UNITRONIC ROBUST C (TP) 6X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 6 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 7.1mm -
1032105 | UNITRONIC ROBUST C (TP) 8X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 8 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 8.2mm -
1032106 | UNITRONIC ROBUST C (TP) 10X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 10 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 8.7mm -
1032107 | UNITRONIC ROBUST C (TP) 12X2X0,14 | Halogen Free CableScreened Halogen free cable, Twisted Pair, Number of Conductors: 12 x 2, Conductor Diameter: 0.14mm², Outer Cable Diameter: 8.9mm
