Lapp H05Z-K 90°C & H07Z
H05Z-K 90°C
Halogen-free single core, harmonised
- Harmonised; halogen-free to protect human life, the environment and material assets
- H05Z-K 90°C, <HAR>, Halogen-free single core, harmonised, for wiring in control cabinets, nominal voltage 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- Halogen-free and harmonised (HAR)
- For expanded ambient temperatures
- see ÖLFLEX® HEAT 125 SC
-
4726013 | H07Z-K 90°C 1x4 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.9mm, Black
-
4726013K | H07Z-K 90°C EMBOSS 1x4 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.9mm, Black
-
4726014 | H07Z-K 90°C 1x6 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.5mm, Black
-

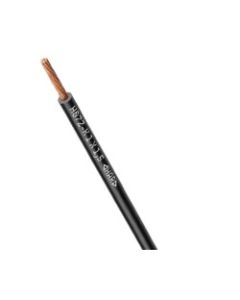

4726014K | H07Z-K 90°C EMBOSS 1x6 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.5mm, Black
-
4726015 | H07Z-K 90°C 1x10 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 10mm², Cable Outer Diameter: 5.7 - 7.1mm, Black
-
4726016 | H07Z-K 90°C 1x16 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 16mm², Cable Outer Diameter: 6.7 - 8.4mm, Grey
-
4726017 | H07Z-K 90°C 1x25 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 25mm², Cable Outer Diameter: 8.4 - 10.6mm, Black
-
4726018 | H07Z-K 90°C 1x35 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 35mm², Cable Outer Diameter: 9.7 - 12.1mm, Black
-
4726019 | H07Z-K 90°C 1x50 BK | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 50mm², Cable Outer Diameter: 11.5 - 14.4mm, Black
-
4726021 | H07Z-K 90°C 1x1,5 BU | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.5mm, Blue
-
4726021K | H07Z-K 90°C EMBOSS 1x1,5 BU | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.5mm, Blue
-
4726022 | H07Z-K 90°C 1x2,5 BU | Single Core CableHarmonised Halogen-Free Cable, For Wiring in Control Cabinets, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.3mm, Blue
