OLFLEX CRANE
LAPP OLFLEX CRANE CABLE
- Weather-resistant for harsh environmental conditions
- Very flexible due to extra-fine wire conductor design
- Cables up to a max. 24 cores can also be used in power chains
Product features
- Flame-retardant according IEC 60332-1-2
- Not suitable for use on guide pulleys or drums under tensile load
- Refer to the article table for the tensile strength of the support element
- The cable should be installed in a way that the supporting element can absorb the tensile forces
- The mobility of the cores must not be affected by the clamps
Approvals
- Based on VDE 0250
Product Make-up
- Conductor made of bare copper wires
- Core insulation: rubber compound
- Special supporting element as strain relief
- Outer sheath: rubber compound, type EM2
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: black with white numbers
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
-
0045218 | OLFLEX CRANE PUR 5G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 5 Core, Core Diameter 2.5mm² -
0045220 | OLFLEX CRANE PUR 7G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 7 Core, Core Diameter 2.5mm² -
0045221 | OLFLEX CRANE PUR 12G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 12 Core, Core Diameter 2.5mm²
-
0045222 | OLFLEX CRANE PUR 18G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 18 Core, Core Diameter 2.5mm²
-
0045223 | OLFLEX CRANE PUR 24G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 24 Core, Core Diameter 2.5mm²
-
0045224 | OLFLEX CRANE PUR 30G2,5 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 30 Core, Core Diameter 2.5mm²
-
0045225 | OLFLEX CRANE PUR 4G4 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 4 Core, Core Diameter 4mm²
-
0045227 | OLFLEX CRANE PUR 5G4 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 5 Core, Core Diameter 4mm²
-
0045228 | OLFLEX CRANE PUR 4G6 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 4 Core, Core Diameter 6mm²
-
0045229 | OLFLEX CRANE PUR 5G6 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 5 Core, Core Diameter 6mm²
-
0045230 | OLFLEX CRANE PUR 4G10 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 4 Core, Core Diameter 10mm²
-

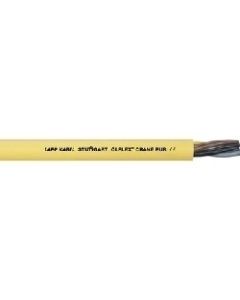

0045231 | OLFLEX CRANE PUR 4G16 | Lapp CablesOLFLEX CRANE PUR, Polyurethane cables for low, medium and high mechanical stress, 4 Core, Core Diameter 16mm²
