Instrumentation Cables
ÖLFLEX® LIFT Cable
VDE-registered PVC control cable with supporting element
- For conveyour technology / lift applications
- Special cable design for a long service life
- Very flexible due to extra-fine wire conductor design
- Suitable for use in outdoor lifts
- G = with GN-YE protective conductor
- X = without protective conductor
- ore ID: Black with white numbers acc. to VDE 0293-1
-
0032451 | UNITRONIC 10X2X0,5 BK | Computer CableUNITRONIC RE-2Y(ST)YV PIMF 10X2X0,5 BK with reinforced outer sheath, pairs in metal foil, No. of conductors: 10 x 2, Conductor Cross section: 0.5mm²
-
0032453 | UNITRONIC 16X2X0,5 BK | Computer CableInstrumentation cable with reinforced outer sheath and pairs in metal foil, Number of conductors: 16 x 2, Condutor Diameter: 0.5mm²
-
0032458 | UNITRONIC 2X2X1,3 BU |Computer CableInstrumentation cable with reinforced outer sheath and pairs in metalfoil, Number of conductors: 2 x 2, Condutor Cross section: 1.3mm²
-
0032464 | UNITRONIC 2X2X1,3 BK | Computer CableUNITRONIC RE-2Y(ST)YV PIMF 2X2X1,3 BK, cable with reinforced outer sheath, pairs in metal foil, No. of conductors: 2 x 2, Condutor Cross section: 1.3mm²
-
0032465 | UNITRONIC 4X2X1,3 BK | Computer CableBK, Instrumentation cable with reinforced outer sheath and pairs in metalfoil, Number of conductors: 4 x 2, Condutor Cross section: 1.3mm²
-
0032466 | UNITRONIC 8X2X1,3 BK | Computer CableUNITRONIC RE-2Y(ST)YV PIMF 8X2X1,3 BK, Cable with reinforced outer sheath and pairs in metalfoil, No. of conductors: 8 x 2, Condutor Cross section: 1.3mm²
-

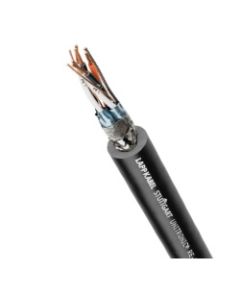

0032467 | UNITRONIC 12X2X1,3 BK | Computer CableUNITRONIC RE-2Y(ST)YV PIMF 12X2X1,3 BK, Computer cable, reinforced outer sheath, pairs in metal foil, No. of conductors: 12 x 2, Conductor Cross section: 1.3mm²
-
0034120 | JE-Y(ST)Y...BD EB 2X2X0,8 | Instrumentation CableJE-Y(ST)Y...BD EB 2X2X0,8, Static screened installation cable, Number of conductors: 2 x 2, Condutor Cross section: 0.8mm²
-
0034121 | JE-Y(ST)Y...BD EB 4X2X0,8 | Instrumentation CableJE-Y(ST)Y...BD EB 4X2X0,8, Static screened installation cable, Number of conductors: 4 x 2, Condutor Cross section: 0.8mm²
-
0034122 | JE-Y(ST)Y...BD EB 8X2X0,8 | Instrumentation CableJE-Y(ST)Y...BD EB 8X2X0,8, Static screened installation cable, Number of conductors: 8 x 2, Condutor Cross section: 0.8mm²
-
0034123 | JE-Y(ST)Y...BD EB 12X2X0,8 | Instrumentation CableJE-Y(ST)Y...BD EB 12X2X0,8, Static screened installation cable, Number of conductors: 12 x 2, Condutor Cross section: 0.8mm²
-
0034125 | JE-Y(ST)Y...BD EB 20X2X0,8 | Instrumentation CableJE-Y(ST)Y...BD EB 20X2X0,8, Static screened installation cable, Number of conductors: 20 x 2, Condutor Cross section: 0.8mm²
