Control Cabinet Single Core Cables
A range of Harmonised approved PVC single core cables
These multi standard wiring cables are designed for use in control panels as well as for installation in conduits and trunking, applicable within the scope of the UL or Canadian or European standard specifications. They are particularly designed for use in the wiring of industrial machines in accordance with NFPA 79. Available in sizes from 0.14mm² up to 240mm², and in a range of various colours.Working voltages from 50V to 750V.
-

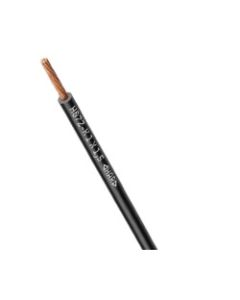

4521014 | H07V-K 1X70 BK | LAPP Single Core Cable4521014, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 70mm², Cable Outer Diameter: 13.2 - 16mm, Black
-
4521015 | H07V-K 1X95 BK | LAPP Single Core Cable4521015, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 95mm², Cable Outer Diameter: 15.1 - 18.2mm, Black
-
4521016 | H07V-K 1X120 BK | LAPP Single Core Cable4521016, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 120mm², Cable Outer Diameter: 16.7 - 20.2mm, Black
-
4521017 | H07V-K 1X150 BK | LAPP Single Core Cable4521017, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 150mm², Cable Outer Diameter: 18.6 - 22.5mm, Black
-
4521018 | H07V-K 1X185 BK | LAPP Single Core Cable4521018, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 185mm², Cable Outer Diameter: 20.6 - 24.9mm, Black
-
4521019 | H07V-K 1X240 BK | LAPP Single Core Cable4521019, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 240mm², Cable Outer Diameter: 23.5 - 28.4mm, Black
-

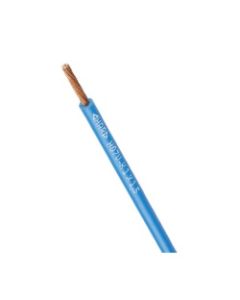

4521021 | H07V-K 1X25 BU | LAPP Single Core Cable4521021, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 25mm², Cable Outer Diameter: 8.4 - 10.2mm, Blue
-
4521022 | H07V-K 1X35 BU | LAPP Single Core Cable4521022, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 35mm², Cable Outer Diameter: 9.7 - 11.7mm, Blue
-
4521023 | H07V-K 1X50 BU | LAPP Single Core Cable4521023, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 50mm², Cable Outer Diameter: 11.5 - 13.9mm, Blue
-
4521024 | H07V-K 1X70 BU | LAPP Single Core Cable4521024, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 70mm², Cable Outer Diameter: 13.2 - 16mm, Blue
-
4521025 | H07V-K 1X95 BU | LAPP Single Core Cable4521025, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 95mm², Cable Outer Diameter: 15.1 - 18.2mm, Blue
-

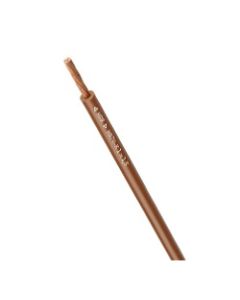

4521031 | H07V-K 1X25 BN | LAPP Single Core Cable4521031, Single Core Cable, H07V-K, HAR, power and control cable, Conductor Cross Section: 25mm², Cable Outer Diameter: 8.4 - 10.2mm, Brown
