Control Cabinet Single Core Cables
A range of Harmonised approved PVC single core cables
These multi standard wiring cables are designed for use in control panels as well as for installation in conduits and trunking, applicable within the scope of the UL or Canadian or European standard specifications. They are particularly designed for use in the wiring of industrial machines in accordance with NFPA 79. Available in sizes from 0.14mm² up to 240mm², and in a range of various colours.Working voltages from 50V to 750V.
-
8120031 | LAPP H07V-K 1x1,5 BN | Single Core Cable8120031, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 2.8 - 3.4mm, Brown
-
8120032 | LAPP H07V-K 1X2,5 BN | Single Core Cable8120032, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Brown
-
8120033 | LAPP H07V-K 1x4 BN | Single Core Cable8120033, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.8mm, Brown
-

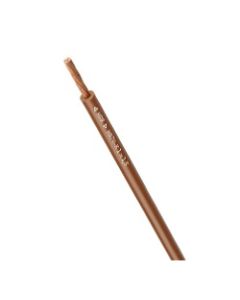

8120034 | LAPP H07V-K 1x6 BN | Single Core Cable8120034, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.3mm, Brown
-
8120061 | LAPP H07V-K 1X1,5 GY | Single Core Cable8120061, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 1.5mm², Cable Outer Diameter: 3.4 - 2.8mm, Grey
-

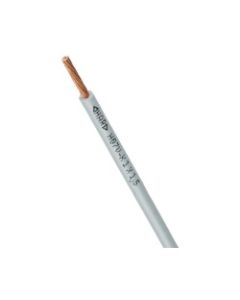

8120062 | LAPP H07V-K 1x2,5 GY | Single Core Cable8120062, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 2.5mm², Cable Outer Diameter: 3.4 - 4.1mm, Grey
-
8120063 | LAPP H07V-K 1x4 GY | Single Core Cable8120063, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 4.0mm², Cable Outer Diameter: 3.9 - 4.8mm, Grey
-
8120064 | LAPP H07V-K N/H 1x6 GY | Single Core Cable8120064, Single Core Cable, Flame Retardant power and control cable, Conductor Cross Section: 6.0mm², Cable Outer Diameter: 4.4 - 5.3mm, Grey
