Lapp OLFLEX 191
ÖLFLEX® 191
PVC control cable with UL/CSA AWM, oil-resistant and flexible
- Conductor cross-section up to 120 mm²
- Oil-resistant according to EN 50363-4-1: TM5
- Flame-retardant according to IEC 60332-1-2
- UL 1581 §1061 Cable Flame Test
- Core ID: Black with white numbers acc. to VDE 0293-1
- High electrical performance due to 4 kV test voltage
- G = with GN-YE protective conductor
- X = without protective conductor
Application range
- Plant engineering
- Industrial machinery
- Heating and air-conditioning systems
- Machine tools
- Mainly used in dry, damp and wet interiors (including water-oil mixtures)
- Not for outdoor use
- For fixed installation under medium mechanical load conditions
- For applications with occasional flexing at free, noncontinuously recurring movement without tensile load or compulsory guidance
- For the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2015:
-
0011166 | OLFLEX 191 4G6 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 5 G 6mm² -
0011167 | OLFLEX 191 7G4 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 7 G 4mm²
-
0011169 | OLFLEX 191 4G10 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 4 G 10mm²
-
0011170 | OLFLEX 191 5G10 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 5 G 10mm²
-
0011172 | OLFLEX 191 4G16 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 4 G 16mm²
-
0011173 | OLFLEX 191 5G16 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 5 G 16mm²
-
0011175 | OLFLEX 191 4G25 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 4 G 25mm²
-

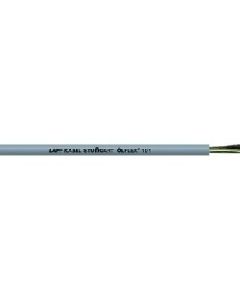

0011176 | OLFLEX 191 5G25 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 5 G 25mm² -
0011178 | OLFLEX 191 4G35 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 4 G 35mm²
-
0011179 | OLFLEX 191 5G35 | Oil Resistant PVC CableOil-resistant multi-standard cable with AWM approval, Number of Cores and core diameter, 5 G 35mm²
-
0011180 | OLFLEX 191CY 3G1,0 | Screened PVC control cableScreened and oil-resistant multi-standard cable with AWM approval Number of cores and core diameter: 3 G 1mm² -
0011181 | OLFLEX 191CY 4G1 | Screened PVC control cableScreened and oil-resistant multi-standard cable with AWM approval Number of cores and core diameter: 4 G 1mm²
