Spiral Cables
Spiralised Cables
- Fine-wire strand made of bare copper wires
- High mechanical strength
- Oil- and abrasion-resistant
- With / Without protective conductor
- Number of conductors: From 2 to 18
- Conductor Cross Sections from 0.14 mm² to 2.5mm²
- Shielded and unshielded versions available
- Product values are nominal values
-
70002716 | OLFLEX SPIRAL 400 P 3G2,5/500 | Spiral CableOlflex PUR spiral cable, Number of cores: 3, Conductor cross section: 2.5mm², Spiral Length extended: 1250mm, Length retracted: 500 mm
-
70002717 | OLFLEX SPIRAL 400 P 3G2,5/1000 | Spiral CableOlflex PUR spiral cable, Number of cores: 3, Conductor cross section: 2.5mm², Spiral Length extended: 2500mm, Length retracted: 1000 mm
-
70002718 | OLFLEX SPIRAL 400 P 3G2,5/1500 | Spiral CableOlflex PUR spiral cable, Number of cores: 3, Conductor cross section: 2.5mm², Spiral Length extended: 3750mm, Length retracted: 1500 mm
-
70002719 | OLFLEX SPIRAL 400 P 3G2,5/2000 | Spiral CableOlflex PUR spiral cable, Number of cores: 3, Conductor cross section: 2.5mm², Spiral Length extended: 5000mm, Length retracted: 2000 mm
-
70002721 | OLFLEX SPIRAL 400 P 5G2,5/500 | Spiral CableOlflex PUR spiral cable, Number of cores: 5, Conductor cross section: 2.5mm², Spiral Length extended: 1250mm, Length retracted: 500 mm
-

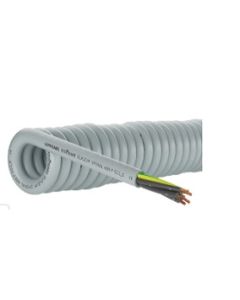

70002722 | OLFLEX SPIRAL 400 P 5G2,5/1000 | Spiral CableOlflex PUR spiral cable, Number of cores: 5, Conductor cross section: 2.5mm², Spiral Length extended: 2500mm, Length retracted: 1000 mm
-
70002723 | OLFLEX SPIRAL 400 P 5G2,5/1500 | Spiral CableOlflex PUR spiral cable, Number of cores: 5, Conductor cross section: 2.5mm², Spiral Length extended: 3750mm, Length retracted: 1500 mm
-
70002724 | OLFLEX SPIRAL 400 P 5G2,5/2000 | Spiral CableOlflex PUR spiral cable, Number of cores: 5, Conductor cross section: 2.5mm², Spiral Length extended: 5000mm, Length retracted: 2000 mm
-
70002726 | OLFLEX SPIRAL 400 P 7G0,75/500 | Spiral CableOlflex PUR spiral cable, Number of cores: 7, Conductor diameter: 0.75mm², Spiral Length extended: 1500mm, Length retracted: 500mm
-
70002727 | OLFLEX SPIRAL 400 P 7G0,75/1000 | Spiral CableOlflex PUR spiral cable, Number of cores: 7, Conductor cross section: 0.75mm², Spiral Length extended: 3000mm, Length retracted: 1000mm
-
70002728 | OLFLEX SPIRAL 400 P 7G0,75/1500 | Spiral CableOlflex PUR spiral cable, Number of cores: 7, Conductor cross section: 0.75mm², Spiral Length extended: 4500mm, Length retracted: 1500mm
-
70002729 | OLFLEX SPIRAL 400 P 7G0,75/2000 | Spiral CableOlflex PUR spiral cable, Number of cores: 7, Conductor cross section: 0.75mm², Spiral Length extended: 6000mm, Length retracted: 2000mm
